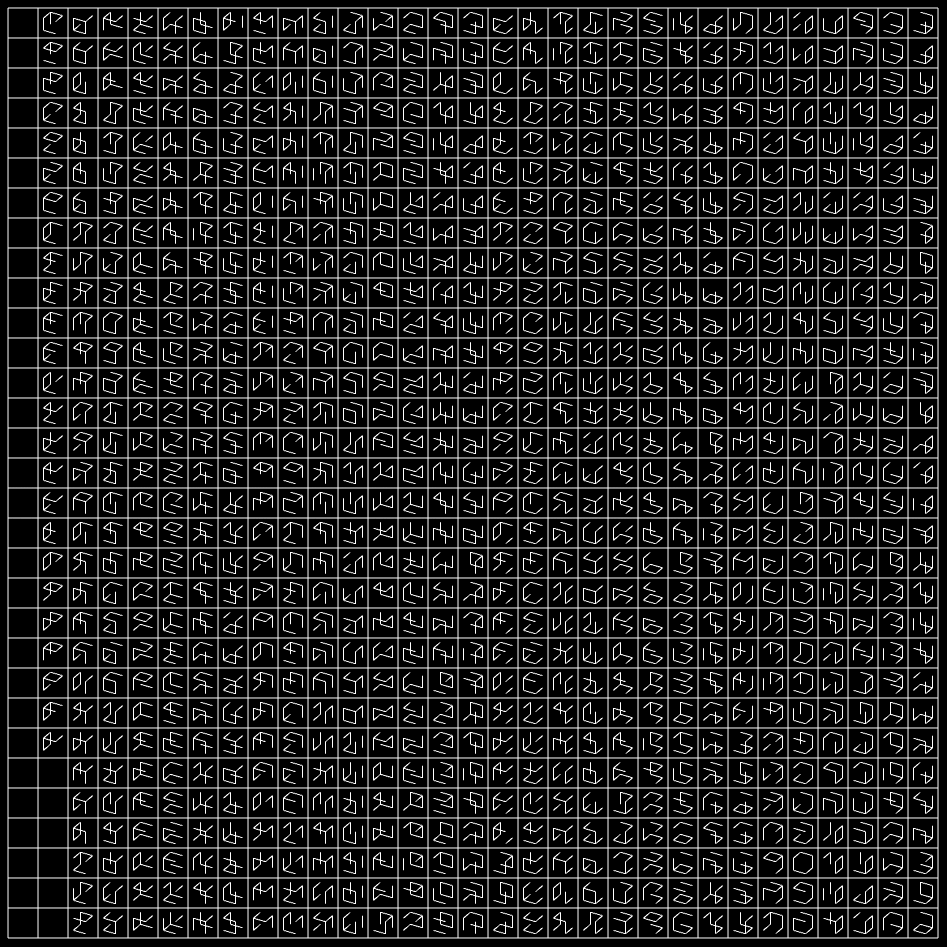

Cube Limit Series

Calvin Hu

Based on: The Cubic Limit Series by Manfred Mohr, 1976

Category: direct

Description:

This sketch does not run in the browser.

```/*
Part of the ReCode Project (http://recodeproject.com)
Based on "Cube Limit Series - Inward" by Manfred Mohr
Originally published in "Computer Graphics and Art" vol1 no2, 1976
*/

int offset = 30;
int interval = 30;
int[] bitPositions = {0, 1, 2, 3, 4, 5, 12};
boolean[] permutation = {true,true,true,true,true,true,false,false,false,false,false,false};

void draw_cube(int slength, boolean[] permutation){
int side = slength/2;
int start_point = -side;
if(permutation[0])
line(start_point, start_point, start_point, start_point, start_point, side);
if(permutation[1])
line(start_point, start_point, start_point, start_point, side, start_point);
if(permutation[2])
line(start_point, start_point, start_point, side, start_point, start_point);
if(permutation[3])
line(start_point, start_point, side, start_point, side, side);
if(permutation[4])
line(start_point, start_point, side, side, start_point, side);
if(permutation[5])
line(start_point, side, start_point, side, side, start_point);
if(permutation[6])
line(start_point, side, start_point, start_point, side, side);
if(permutation[7])
line(side, start_point, start_point, side, side, start_point);
if(permutation[8])
line(side, start_point, start_point, side, start_point, side);
if(permutation[9])
line(side, side, start_point, side, side, side);
if(permutation[10])
line(side, start_point, side, side, side, side);
if(permutation[11])
line(start_point, side, side, side, side, side);
}

boolean[] swap_boolean_array(boolean[] boolArr, int indexFrom, int indexTo){
boolean temp = boolArr[indexTo];
boolArr[indexTo] = boolArr[indexFrom];
boolArr[indexFrom] = temp;
return boolArr;
}

boolean nextPermutation(){
for(int i = 5; i >= 0; i--){
if(bitPositions[i] + 1 < bitPositions[i + 1]){
permutation = swap_boolean_array(permutation, bitPositions[i], ++bitPositions[i]);
if(i < 5){
for(int j = i + 1 ; j < 6; j++){
permutation = swap_boolean_array(permutation, bitPositions[j], bitPositions[j - 1] + 1);
bitPositions[j] = bitPositions[j - 1] + 1;
}
}
return true;
}
}
return false;
}

void setup(){
size(990, 990, P3D);
ortho();
background(0);
noFill();
stroke(255);
for(int i = 0; i < 32; i++){
int columnX = offset + i * interval;
line(columnX, offset, columnX, height - offset);
}
for(int i = 0; i < 32; i++){
int rowY = offset + i * interval;
line(offset, rowY, width - offset, rowY);
}

boolean anyPermsLeft = true;
pushMatrix();
translate(32 * interval + offset/2, offset/2);
for(int i = 0; i < 31 & anyPermsLeft; i++){
translate(-interval, 0);
pushMatrix();
for(int j = 0; j < 31 & anyPermsLeft; j++){
translate(0, interval);
pushMatrix();
rotateX(PI * 5/6);
rotateY(PI * -5/6);
draw_cube(15, permutation);
anyPermsLeft = nextPermutation();
popMatrix();
}
popMatrix();
}
popMatrix();
}

void draw(){
}```
